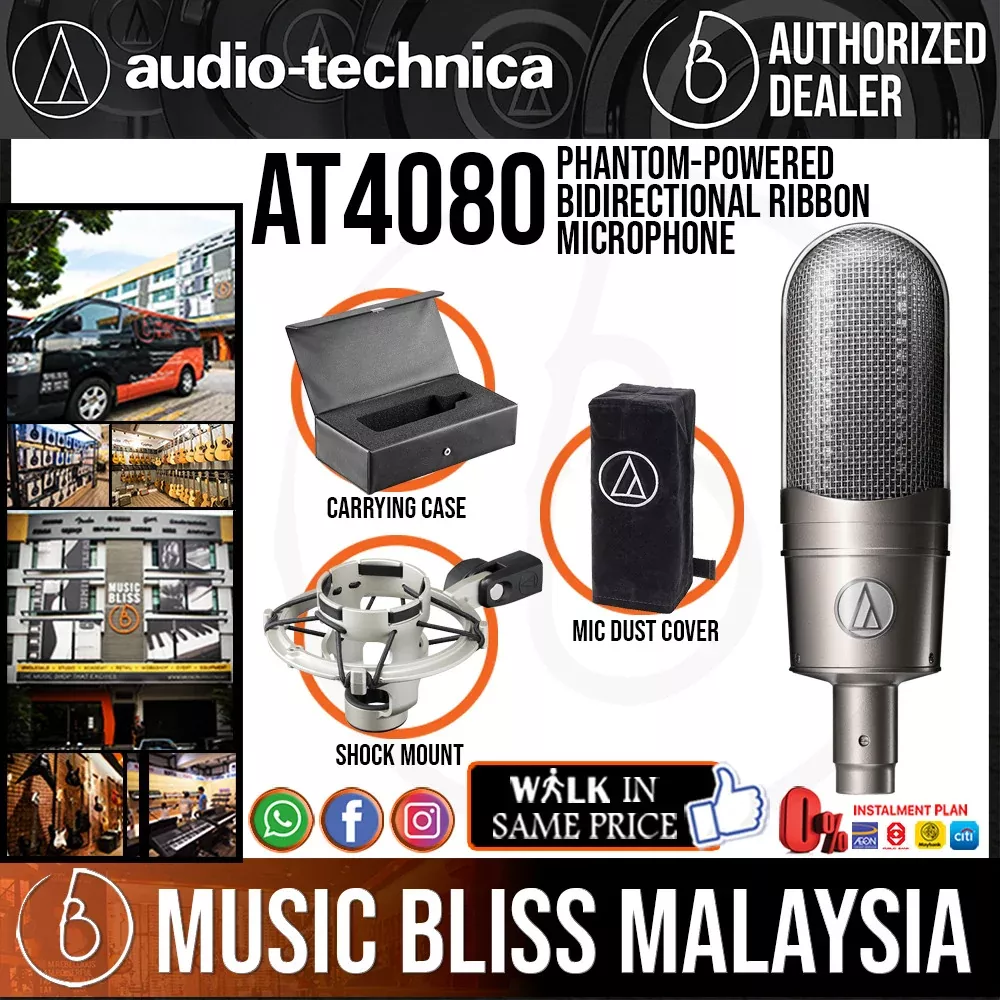

Audio Technica AT4080 Active Ribbon Microphone

Description

Audio Technica AT4080 Active Ribbon Microphone (Audio-Technica AT-4080 / AT 4080)

With the groundbreaking AT4080, Audio-Technica achieves the coveted ribbon microphone sound while solving the problems of fragility and low output that have historically plagued ribbon mics. Delivering the warm, smooth sound of a classic ribbon microphone, Audio-Technica’s handcrafted AT4080 Ribbon Microphone offers a robust build for long-lasting, reliable performance and higher output for maximum compatibility with microphone preamplifiers. Equally at home in recording studios and live-sound settings, the microphone features Audio-Technica’s innovative MicroLinear™ ribbon imprint, which protects the dual ribbons from lateral flexing and distortion. Utilizing six new patents*, Audio-Technica’s innovative ribbon transducer advances the evolution of ribbon microphone design. Experience the difference.

FEATURES

• Smooth, warm and natural high-fidelity sound for professional recording, broadcast and sound reinforcement
• Proprietary MicroLinear™ ribbon imprint for superior durability
• Innovative dual ribbon construction for increased sensitivity
• Extremely powerful N50 rare earth magnets for high output level
• Ultra-fine mesh helps protect against ribbon damage
• Classic bidirectional (figure-of-eight) polar pattern picks up sounds equally from the front and back of the element
• High-SPL capability and extended frequency response
• Extended frequency response for natural audio reproduction
• Acoustic baffle system and extra large output transformer provide natural low-frequency response and extended dynamic range
• Handmade production – including ribbon corrugation, imprint and assembly
• Open acoustical environment of the housing assembly minimizes unwanted internal reflections
• Phantom-powered active electronics provide stable impedance and higher output for maximum compatibility with microphone preamplifiers
• Custom shock mount provides superior isolation
• Certified by the METAlliance (Music Engineering and Technology Alliance)

SPECIFICATIONS

• Element : Ribbon
• Polar Pattern : Figure-of-eight
• Frequency Response : 20-18,000 Hz
• Open Circuit Sensitivity : –39 dB (11.2 mV) re 1V at 1 Pa
• Maximum Input Sound Level : 150 dB SPL, 1 kHz at 1% T.H.D.
• Noise : 22 dB SPL
• Dynamic Range : 128 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio : 72 dB, 1 kHz at 1 Pa
• Phantom Power Requirements : 48V DC, 3.0 mA typical
• Weight : 474 g (16.7 oz)
• Dimensions : 177.5 mm (6.99″) long, | 53.4 mm (2.10″) maximum body diameter
• Output Connector : Integral 3-pin XLRM-type
• Audio-Technica Case Style : R1

Product Dimension Shipping Weight: 1.8 kg
